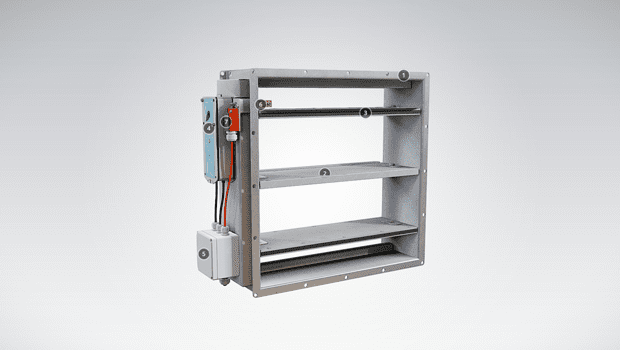

UL listed Fire Damper

Motorised (electric, pneumatic / Manual operation, leakage Class I, high temperature, high pressure, UL listed fire dampers, also for explosion proof hazardous area

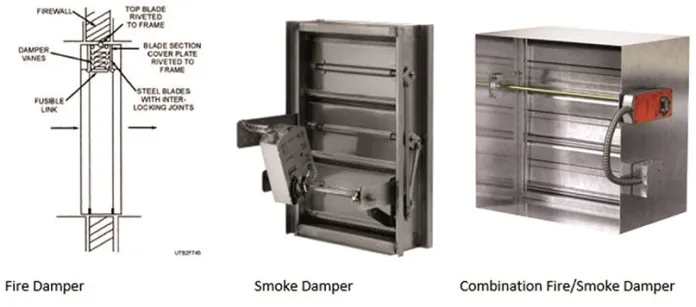

Fire Dampers

High Performance, low leakage, robust, high temperature fire dampers are used in air transfer openings, wall opening, ducts, and other places where fire-rated structures (e.g., walls, floors, or other fire barriers) are penetrated. The idea of compartmentalization is to keep the fire at its starting point and prevent it from spreading to other locations.

Fire dampers can be operated using manual shaft, or electric / pneumatic motor actuator. These are available for explosion proof area Zone 1, Zone 2, 22 installation.

Description

Key Features:

  • Available Sizes: 150 x 150 mm to 2400 x 2400 mm
  • Mounting: Duct mount, Wall mount
  • Pressure: Up to 200 mmWC
  • Velocity: Up to 4,800 FPM
  • Blade Type: 3V, Airfoil
  • Shaft / Damper Movement: manual, motorise
  • Actuator type: UL listed 24V DC/AC, 230V AC powered 4 Nm to 24 Nm Torque
  • Actuator Option: Electric, Pneumatic
  • Option: Explosion proof / Flameproof ATEX / UL certified for Zone 1, 2, 22 hazardous area
  • Leakage Class: Class I, Class III
  • Temperature Rating: 300 deg cel, 400 deg cel for 90 mins, 120 mins, 180 mins
  • Fire resistance rating: 1½ to 3 hours
  • Material: Galvanised Steel, Stainless Steel, Aluminum
  • Heavy-duty interlocking blades
  • Robust and fully welded construction.
  • Heavy-duty interlocking blades.
  • Fully enclosed blade linkage mechanism.

Suggested Applications:

  • Buildings: Apartments, hospitals, offices, hotels, mixed-use buildings.
  • Underground Spaces: Car parks, garages, strategic bunkers.
  • Transport Facilities: Metro stations, railway stations, transport warehouses.
  • Commercial Centers: shopping centers, hotels, airports.
  • Industrial Facilities: Manufacturing units, warehouses, industrial processes.

Standards and Compliance Available:

  • UL 555 and UL 555S
  • AMCA Air Performance
  • CBRI Certified (Central Building Research Institute), India
  • Applus+
  • California State Fire Marshal
  • National Fire Protection Association NFPA Standards 80, 90A, 92A, 92B, 101 & 105
  • IBC International Building Codes
  • New York City (MEA listing #260-91-M)
  • CSFM California State Fire Marshal
  • Fire Damper Listing (#3225-0981:103)
  • Leakage (Smoke) Damper Listing (#3230-0981:104)

Options and Accessories:

  • Manual Reset Switch
  • Open/Close Indicator Switch
  • Access Door
  • Smoke Sensor
  • Rollmate Flange (available on request)
  • SS Linkages and Jack Shaft
  • Actuators with a power input of 230 V
  • Control Panel
