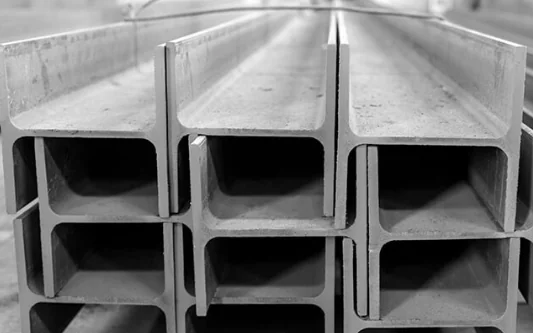

Stainless Steel Beams: HE / HEM / HEB BEAMS

HE / HEM / HEB - beam drawings and dimensions

HEB beams, stand for High-Efficiency Beams, are a type of European wide flange beam used in construction and engineering for their strength and load-bearing capacity. They are known for their robust design, featuring a wide flange and thick web, making them suitable for supporting heavy loads in industrial buildings, bridges, and other infrastructure projects.

Key Features of HEB Beams

Wide Flange: HEM / HEB Beams offer large surface area for connections and improve resistance to bending and shear forces.
Thick Web: offer higher load-bearing capacity.
European Standard: in accordance with EN 10365 and EN 10034: 1993, ensuring quality and consistency.
Robust Design: robust and durable, making them suitable for demanding construction environments.

Common Construction Application:

Industrial Buildings: Supporting floors, roofs, and other structural elements.
Bridges: Forming the main supports and substructures.
Heavy Infrastructure: Used in projects involving large spans and heavy loads.

General properties									Structural properties
Designation		Dimensions					Dimensions for detailing		Strong axis y-y					Weak axis z-z
	G kg/m	h mm	b mm	tw mm	tf mm	A mm2 x102	hi mm	d* mm	Iy mm4 x104	Wel.y mm3 x103	Wpl.y mm3 x103	iy mm x10	Avz mm2 x102	Iz mm4 x104	Wel.z mm3 x103	Wpl.z mm3 x103	iz mm x10	Ss mm	It mm4 x104	Iw mm6 x109
HE 100 AA	11.5	91	100	4.2	5.5	14.39	80	76	219.77	48.3	53.88	3.91	3.85	91.72	18.34	27.86	2.52	17.54	1.35	1.68
HE 100 A	16	96	100	5	8	20.03	80	76	332.48	69.27	78.54	4.07	4.75	133.42	26.68	40.51	2.58	23.34	3.76	2.58
HE 100 B	19.9	100	100	6	10	24.83	80	76	432.8	86.56	99.74	4.17	5.83	166.81	33.36	50.73	2.59	28.34	7.2	3.38
HE 100 C	30.5	110	103	9	15	38.13	80	76	741.91	134.89	161.31	4.41	9.18	273.68	53.14	81.2	2.68	32.34	24.66	6.16
HE 100 M	41.6	120	106	12	20	52.03	80	76	1125.87	187.65	231.34	4.65	12.83	398.17	75.13	115.26	2.77	54.34	59.33	9.93
HE 120 AA	13.9	109	120	4.2	5.5	17.35	98	94	387.59	71.12	78.56	4.73	4.6	158.46	26.41	40.04	3.02	17.54	1.61	4.24
HE 120 A	19.3	114	120	5	8	24.13	98	94	580.38	101.82	113.93	4.9	5.65	230.51	38.42	58.22	3.09	23.34	4.52	6.47
HE 120 B	26.2	120	120	6.5	11	32.8	98	94	838.6	139.77	159.65	5.06	7.56	317.03	52.84	80.25	3.11	30.84	11.45	9.41
HE 120 C	39	130	123	9.5	16	48.7	98	94	1362.52	209.62	247.33	5.29	11.5	496.94	80.8	123.26	3.19	34.34	35.72	16.12
HE 120 M	52.2	140	126	12.5	21	65.2	98	94	1991.8	284.54	345.05	5.53	15.75	701.74	111.39	170.55	3.28	56.84	81.83	24.79
HE 140 AA	17.5	128	140	4.3	6	21.82	116	112	682.7	106.67	117.14	5.59	5.52	274.48	39.21	59.35	3.55	18.64	2.36	10.21
HE 140 A	24.2	133	140	5.5	8.5	30.21	116	112	996.38	149.83	166.85	5.74	7.22	388.9	55.56	84.19	3.59	24.84	6.4	15.06
HE 140 B	33.4	140	140	7	12	41.75	116	112	1472.48	210.35	238.79	5.94	9.47	549.14	78.45	119.03	3.63	33.34	17.29	22.48
HE 140 C	48.2	150	143	10	17	60.25	116	112	2293.02	305.74	357.16	6.17	14.01	829.5	116.01	176.74	3.71	36.34	49.77	36.64
HE 140 M	63.5	160	146	13	22	79.35	116	112	3254.61	406.83	487.19	6.4	18.85	1143.26	156.61	239.4	3.8	59.34	109.16	54.33
HE 160 AA	22.8	148	160	4.5	7	28.46	134	130	1206	162.97	178.35	6.51	6.66	477.97	59.75	90.29	4.1	20.84	4.09	23.75
HE 160 A	29.5	152	160	6	9	36.87	134	130	1596.1	210.01	233.08	6.58	8.97	614.65	76.83	116.42	4.08	26.34	8.78	31.41
HE 160 B	41.9	160	160	8	13	52.35	134	130	2415.12	301.89	341.9	6.79	12.31	888.05	111.01	168.56	4.12	36.34	25.55	47.94
HE 160 C	58.8	170	163	11	18	73.45	134	130	3627.28	426.74	495.58	7.03	17.47	1300.72	159.6	243.19	4.21	38.34	68.32	75.04
HE 160 M	76.1	180	166	14	23	95.15	134	130	5021.39	557.93	662.5	7.26	22.93	1756.56	211.63	323.49	4.3	62.34	143.7	108.05
HE 180 AA	27.7	167	180	5	7.5	34.63	152	148	1866.77	223.57	244.46	7.34	8.31	729.16	81.02	122.46	4.59	22.34	5.73	46.36
HE 180 A	34.7	171	180	6	9.5	43.35	152	148	2410.16	281.89	311.08	7.46	10.1	923.68	102.63	155.28	4.62	27.34	11.39	60.21
HE 180 B	50.7	180	180	8.5	14	63.35	152	148	3731	414.56	467.68	7.67	14.7	1361.59	151.29	229.56	4.64	38.84	35.75	93.75
HE 180 C	69.6	190	183	11.5	19	87.05	152	148	5442.98	572.94	661.25	7.91	20.46	1942.63	212.31	323.19	4.72	40.34	90.02	141.87
HE 180 M	89.1	200	186	14.5	24	111.35	152	148	7383	738.3	869.68	8.14	26.51	2577.82	277.19	423.17	4.81	64.84	182.86	199.33
HE 200 AA	33.1	186	200	5.5	8	41.38	170	166	2764.06	297.21	324.83	8.17	10.14	1066.91	106.69	161.3	5.08	23.84	7.82	84.49
HE 200 A	40.9	190	200	6.5	10	51.08	170	166	3511.91	369.67	407.25	8.29	12.13	1333.73	133.37	201.81	5.11	28.84	14.91	108
HE 200 B	60.3	200	200	9	15	75.33	170	166	5515.93	551.59	620.32	8.56	17.28	2001.04	200.1	303.46	5.15	41.34	48.68	171.13
HE 200 C	81.3	210	203	12	20	101.63	170	166	7849.12	747.54	858.39	8.79	23.63	2790.94	274.97	418.23	5.24	42.34	116.25	251.66
HE 200 M	102.8	220	206	15	25	128.53	170	166	10461.66	951.06	1112.92	9.02	30.28	3647.23	354.1	540.04	5.33	67.34	228.77	346.26
HE 220 AA	39	205	220	6	8.5	48.71	188	184	3947.74	385.15	420.79	9	12.16	1508.81	137.16	207.4	5.57	25.34	10.43	145.61
HE 220 A	49.3	210	220	7	11	61.59	188	184	5187.21	494.02	543.75	9.18	14.4	1952.68	177.52	268.52	5.63	31.34	21.65	193.27
HE 220 B	70.6	220	220	9.5	16	88.29	188	184	7868.48	715.32	802.34	9.44	20.05	2840.82	258.26	391.46	5.67	43.84	64.78	295.42
HE 220 C	93.8	230	223	12.5	21	117.19	188	184	10957.49	952.82	1089.52	9.67	27	3884.42	348.38	529.52	5.76	44.34	147.58	423.85
HE 220 M	117.4	240	226	15.5	26	146.69	188	184	14382.34	1198.53	1394.74	9.9	34.24	5007.9	443.18	675.31	5.84	69.84	282.13	572.68
HE 240 AA	45.3	224	240	6.5	9	56.62	206	202	5472.34	488.6	533.71	9.83	14.37	2074.08	172.84	261.39	6.05	26.84	13.64	239.63
HE 240 A	58.5	230	240	7.5	12	73.08	206	202	7400.34	643.51	707.76	10.06	16.86	2765.53	230.46	348.51	6.15	33.84	30.47	328.49
HE 240 B	81.8	240	240	10	17	102.23	206	202	10896.46	908.04	1016.28	10.32	23.01	3918.53	326.54	494.77	6.19	46.34	84.54	486.95
HE 240 C	118.7	255	244	14	24.5	148.43	206	202	16963.93	1330.5	1526.81	10.69	33.28	5936.5	486.6	739.44	6.32	51.34	252.71	787.89
HE 240 M	159.7	270	248	18	32	199.59	206	164	24299.58	1799.97	2116.95	11.03	60.07	8152.04	657.42	1005.93	6.39	106.6	627.9	1151.99
HE 260 AA	51.2	244	260	6.5	9.5	64.06	225	221	7416.32	607.89	661.87	10.76	15.66	2783.39	214.11	323.49	6.59	27.84	16.98	382.58
HE 260 A	65.5	250	260	7.5	12.5	81.91	225	221	9890.71	791.26	867.18	10.99	18.35	3662.46	281.73	425.68	6.69	34.84	36.85	516.35
HE 260 B	90.8	260	260	10	17.5	113.53	225	221	14355.18	1104.24	1230.32	11.24	24.98	5128.22	394.48	597.14	6.72	47.34	99.19	753.65
HE 260 C	130.8	275	264	14	25	163.53	225	221	22026.97	1601.96	1827.57	11.61	36.03	7671.72	581.19	882.25	6.85	52.34	289.4	1197.9
HE 260 M	171.8	290	268	18	32.5	214.73	225	221	30742.61	2120.18	2471.02	11.97	47.68	10437.42	778.91	1185.4	6.97	85.34	637.76	1728.35
HE 280 AA	58.5	264	280	7	10	73.11	244	240	9889.38	749.2	815.81	11.63	18.21	3659.37	261.38	395	7.07	29.34	21.54	590.11
HE 280 A	73.9	270	280	8	13	92.35	244	240	13004.7	963.31	1054.97	11.87	21.11	4757.31	339.81	513.52	7.18	36.34	45.01	785.37
HE 280 B	101.2	280	280	10.5	18	126.45	244	240	18601.67	1328.69	1477.18	12.13	28.26	6587.96	470.57	712.34	7.22	48.84	117.02	1130.15
HE 280 C	144.2	295	284	14.5	25.5	180.25	244	240	28138.29	1907.68	2167.95	12.49	40.13	9741.4	686.01	1041.22	7.35	53.34	332.29	1767.67
HE 280 M	188.2	310	288	18.5	33	235.25	244	240	38878.74	2508.31	2908.38	12.86	52.6	13151.24	913.28	1389.49	7.48	86.84	721.48	2520.23
HE 300 AA	66.1	283	300	7.5	10.5	82.68	262	258	12831.05	906.79	987.53	12.46	20.89	4725.93	315.06	476.2	7.56	30.84	26.95	877.15
HE 300 A	85	290	300	8.5	14	106.3	262	258	17290.45	1192.44	1305.52	12.75	24.05	6301.35	420.09	634.75	7.7	38.84	59.95	1199.77
HE 300 B	114.3	300	300	11	19	142.85	262	258	24192.63	1612.84	1790.92	13.01	31.7	8552.92	570.19	862.95	7.74	51.34	147.14	1687.79
HE 300 C	175.1	320	305	16	29	218.85	262	258	39977.97	2498.62	2848.92	13.52	47.75	13722.4	899.83	1365.66	7.92	60.34	519.62	2903.17
HE 300 M	237.5	340	310	21	39	296.85	262	258	58227.97	3425.17	3999.92	14.01	64.8	19384.41	1250.61	1902.87	8.08	101.34	1263.06	4386.03
HE 320 AA	70.7	301	300	8	11	88.35	279	275	15337.64	1019.11	1113.16	13.18	23.67	4951.2	330.08	499.48	7.49	32.34	31.53	1040.74
HE 320 A	94.5	310	300	9	15.5	118.14	279	275	21818.87	1407.67	1545.04	13.59	27.16	6976.7	465.11	703.17	7.68	42.34	80.62	1512.36
HE 320 B	124.1	320	300	11.5	20.5	155.12	279	275	29713.82	1857.11	2066.2	13.84	35.3	9228.55	615.24	931.75	7.71	54.84	183.85	2068.71
HE 320 C	184.6	340	305	16	30.5	230.72	279	275	47600.99	2800.06	3190.97	14.36	50.77	14432.3	946.38	1436.52	7.91	63.34	598.44	3453.9
HE 320 M	244.7	359	309	21	40	305.82	279	275	67025.12	3733.99	4351.98	14.8	68.62	19690.66	1274.48	1940.42	8.02	103.34	1353.67	5003.86
HE 340 AA	75.4	320	300	8.5	11.5	94.28	297	293	18288.04	1143	1252.28	13.93	26.72	5176.53	345.1	522.88	7.41	33.84	36.69	1231.29
HE 340 A	101.8	330	300	9.5	16.5	127.25	297	293	26428.86	1601.75	1761.83	14.41	30.48	7427.13	495.14	749.22	7.64	44.84	97.44	1824.36
HE 340 B	131.7	340	300	12	21.5	164.67	297	293	35392.15	2081.89	2319.46	14.66	39.11	9679.29	645.29	978.21	7.67	57.34	212.62	2453.63
HE 340 M	247.7	377	309	21	40	309.6	297	293	75107.43	3984.48	4628.93	15.58	72.4	19692.05	1274.57	1942.4	7.98	103.34	1359.22	5584.5
HE 360 AA	80.3	339	300	9	12	100.38	315	311	21608.52	1274.84	1401	14.67	29.94	5401.92	360.13	546.4	7.34	35.34	42.46	1443.54
HE 360 A	109.2	350	300	10	17.5	136.53	315	311	31660.94	1809.2	1994.23	15.23	33.98	7877.64	525.18	795.39	7.6	47.34	116.48	2176.58
HE 360 B	139.5	360	300	12.5	22.5	174.41	315	311	41764.6	2320.26	2588.74	15.47	43.12	10130.14	675.34	1024.83	7.62	59.84	244.31	2883.25
HE 360 M	250.1	395	308	21	40	312.58	315	311	83438.18	4224.72	4895.07	16.34	76.18	19503.09	1266.43	1932.05	7.9	103.34	1360.51	6137.02
HE 400 AA	89.2	378	300	9.5	13	111.47	352	348	29453.23	1558.37	1718.37	16.25	35.23	5852.52	390.17	592.96	7.25	37.84	54.22	1948.42
HE 400 A	122.2	390	300	11	19	152.75	352	348	43270.53	2219	2456.04	16.83	41.6	8553.92	570.26	865.67	7.48	51.34	151.13	2942.08
HE 400 B	153.2	400	300	13.5	24	191.55	352	348	55881.66	2794.08	3125.98	17.08	51.75	10807.23	720.48	1096.06	7.51	63.84	300.23	3817.15
HE 400 M	255.6	432	307	21	40	319.55	352	348	102320.23	4737.05	5464.86	17.89	83.95	19316.84	1258.43	1923.83	7.77	103.34	1367.67	7410.3
HE 450 AA	96.7	425	300	10	13.5	120.83	398	394	39569.35	1862.09	2063.27	18.1	41.72	6078.33	405.22	617.47	7.09	39.34	62.75	2571.73
HE 450 A	137.4	440	300	11.5	21	171.8	398	394	61403.35	2791.06	3095.79	18.91	49.06	9455.06	630.34	958.18	7.42	55.84	202.31	4147.63
HE 450 B	169.4	450	300	14	26	211.75	398	394	77569.28	3447.52	3862.3	19.14	60.43	11709.12	780.61	1189.53	7.44	68.34	379.89	5258.45
HE 450 M	263.4	478	307	21	40	329.21	398	394	129166.06	5404.44	6210.94	19.81	93.61	19320.39	1258.66	1928.9	7.66	103.34	1381.87	9251.5
HE 500 AA	104.5	472	300	10.5	14	130.65	444	440	51739.75	2192.36	2441.84	19.9	48.68	6304.29	420.29	642.26	6.95	40.84	72.36	3303.78
HE 500 A	153.1	490	300	12	23	191.31	444	440	84071.23	3431.48	3814.47	20.96	56.99	10356.41	690.43	1051.01	7.36	60.34	263.81	5643.05
HE 500 B	185.9	500	300	14.5	28	232.41	444	440	104272.24	4170.89	4680.18	21.18	69.59	12611.3	840.75	1283.36	7.37	72.84	472.29	7017.7
HE 500 M	270.5	524	306	21	40	338.07	444	440	159025.39	6069.67	6959.88	21.69	103.27	19136.05	1250.72	1921.71	7.52	103.34	1391.8	11186.75
HE 550 AA	117.3	522	300	11.5	15	146.61	492	488	69286.92	2654.67	2978.28	21.74	58.94	6756.25	450.42	691.29	6.79	43.84	92.96	4337.7
HE 550 A	164.4	540	300	12.5	24	205.53	492	488	108347.76	4012.88	4472.49	22.96	65.49	10808.02	720.53	1099.24	7.25	62.84	302.37	7188.91
HE 550 B	198.3	550	300	15	29	247.83	492	488	133106.42	4840.23	5441.28	23.17	79.34	13063.86	870.92	1332.7	7.26	75.34	529.36	8855.76
HE 550 M	278.5	572	306	21	40	348.15	492	488	194399.5	6797.19	7783.36	23.63	113.35	19139.76	1250.96	1927	7.41	103.34	1406.62	13515.63
HE 600 A	176.2	590	300	13	25	220.23	540	536	136871.05	4639.7	5186.13	24.93	74.48	11259.9	750.66	1147.84	7.15	65.34	344.73	8978.2
HE 600 B	211	600	300	15.5	30	263.73	540	536	166704.05	5556.8	6260.88	25.14	89.58	13516.78	901.12	1382.46	7.16	77.84	591.14	10965.38
HE 600 M	285.9	620	305	21	40	357.43	540	536	233110.48	7519.69	8607.83	25.54	123.43	18956.8	1243.07	1920.07	7.28	103.34	1417.17	15907.59
HE 600 x 337	338.3	632	310	25.5	46	422.93	540	536	278830.3	8823.74	10216.24	25.68	151.3	22914.44	1478.35	2298.13	7.36	94.34	2228.45	19607.71
HE 600 x 399	401.8	648	315	30	54	502.23	540	536	340304.65	10503.23	12291.87	26.03	180.39	28251.87	1793.77	2800.63	7.5	110.34	3635.59	24813.45
HE 650 AA	135.6	620	300	12.5	16	169.53	588	584	108782.73	3509.12	3980.66	25.33	76.17	7209.59	480.64	742.99	6.52	46.84	120.94	6566.69
HE 650 A	188.3	640	300	13.5	26	235.41	588	584	170016.88	5313.03	5957.09	26.87	83.96	11712.07	780.8	1196.82	7.05	67.84	391.09	11027.13
HE 650 B	224.1	650	300	16	31	280.11	588	584	205454.74	6321.68	7140.68	27.08	100.31	13970.09	931.34	1432.66	7.06	80.34	657.86	13362.74
HE 650 M	294	668	305	21	40	367.51	588	584	276506.22	8278.63	9477.76	27.43	133.51	18960.5	1243.31	1925.36	7.18	103.34	1431.99	18649.52
HE 650 x 343	347.4	680	309	25.5	46	434.25	588	584	329401.71	9688.29	11216.8	27.54	163.54	22700.76	1469.3	2291.7	7.23	94.34	2248.49	22730.06
HE 650 x 407	412.4	696	314	30	540	515.55	588	584	401110.66	11526.17	13479.84	27.89	194.79	27995.61	1783.16	2794.45	7.37	110.34	3668.29	28710.55
HE 700 AA	147.8	670	300	13	17	184.71	636	632	136663.26	4079.5	4646	27.2	85.6	7661.66	510.78	791.89	6.44	49.34	145.51	8155.07
HE 700 A	203.4	690	300	14.5	27	254.25	636	632	209244	6065.04	6837.69	28.69	97.25	12166.18	811.08	1248.46	6.92	70.84	448.81	13351.91
HE 700 B	240.1	700	300	17	32	300.15	636	632	250831.07	7166.6	8133	28.91	114.87	14426.07	961.74	1485.98	6.93	83.34	739.76	16064.06
HE 700 M	301.4	716	304	21	40	376.79	636	632	323220.7	9028.51	10344.85	29.29	143.59	18778.77	1235.45	1918.48	7.06	103.34	1442.54	21397.49
HE 700 x 352	353.9	728	308	25	46	442.39	636	632	383623.85	10539.12	12191.77	29.45	172.37	22483.42	1459.96	2281.29	7.13	94.34	2244.96	26047.59
HE 700 x 418	420.6	744	313	29.5	54	525.69	636	632	466451.12	12539.01	14646.63	29.79	205.74	27734.01	1772.14	2783.58	7.26	110.34	3667.59	32848.36
HE 800 AA	168.6	770	300	14	18	210.79	734	730	198896.85	5166.15	5947.7	30.72	106.03	8116.8	541.12	845.99	6.21	52.34	184.73	11451.46
HE 800 A	222.5	790	300	15	28	278.13	734	730	293457.24	7429.3	8422.39	32.48	115.45	12620.67	841.38	1301.31	6.74	73.34	510.51	18290.29
HE 800 B	261.2	800	300	17.5	33	326.48	734	730	349098.22	8727.46	9951.62	32.7	135.58	14882.81	992.19	1541.23	6.75	85.84	827.34	21840.23
HE 800 M	317.3	814	303	21	40	396.57	734	730	432612.6	10629.3	12210.61	33.03	164.17	18602.11	1227.86	1917.14	6.85	103.34	1468.53	27775.29
HE 800 x 373	373.5	826	308	25	46	466.89	734	730	513921.13	12443.61	14419.52	33.18	196.87	22496.18	1460.79	2296.6	6.94	94.34	2296	34071.24
HE 800 x 444	446.6	842	313	30	54	558.27	734	730	624489.07	14833.47	17360.7	33.45	238.59	27763.1	1774	2810.37	7.05	110.34	3789.2	42841.83
HE 900 AA	195.6	870	300	15	20	244.53	830	826	288322.38	6628.1	7684.8	34.34	128.33	9023.37	601.56	946.71	6.07	57.34	254.07	16256.25
HE 900 A	250.3	890	300	16	30	312.83	830	826	409252.28	9196.68	10497.02	36.17	138.83	13528.36	901.89	1403.15	6.58	78.34	638.35	24961.5
HE 900 B	290.9	900	300	18.5	35	363.58	830	826	481242	10694.27	12270.09	36.38	161.46	15793.83	1052.92	1646.05	6.59	90.84	1003.74	29461.36
HE 900 M	332.7	910	302	21	40	415.93	830	826	557611.47	12255.2	14127.75	36.61	184.33	18426.5	1220.3	1915.63	6.66	103.34	1493.89	34746.26
HE 900 x 391	392	922	307	25	46	489.97	830	826	661523.53	14349.75	16677.92	36.74	220.87	22291.2	1452.2	2297.46	6.74	94.34	2339.52	42556.89
HE 900 x 466	468.8	938	312	30	54	585.99	830	826	802123.11	17102.84	20061.81	37	267.39	27521.03	1764.17	2815.09	6.85	110.34	3865.1	53401.18
HE 1000 AA	219.6	970	300	16	21	274.51	928	924	390366.57	8048.8	9425.03	37.71	152.71	9481.7	632.11	1004.42	5.88	60.34	312.95	21276.7
HE 1000 x 249	247.3	980	300	16.5	26	309.15	928	924	464993.98	9489.67	10995.18	38.78	158.48	11734.77	782.32	1233.19	6.16	54.34	485.96	26620.89
HE 1000 A	271.3	990	300	16.5	31	339.15	928	924	537761.48	10863.87	12472.68	39.82	159.51	13984.77	932.32	1458.19	6.42	80.84	717.54	32073.87
HE 1000 B	313.9	1000	300	19	36	392.35	928	924	628663.54	12573.27	14503.42	40.03	184.63	16253.08	1083.54	1703.79	6.44	93.34	1112.68	37636.49
HE 1000 M	349.2	1008	302	21	40	436.51	928	924	706214.69	14012.2	16216.25	40.22	204.91	18434.06	1220.8	1926.43	6.5	103.34	1524.15	43015.04
HE 1000 x 393	394	1016	303	24.4	43.9	492.55	928.2	924.2	791596.8	15582.61	18187.66	40.09	238.98	20466.02	1350.89	2153.4	6.45	90.14	2091.54	48084.27
HE 1000 x 415	416.8	1020	304	26	46	520.99	928	924	837036.61	16412.48	19219.7	40.08	255.11	21675.07	1425.99	2282.45	6.45	94.34	2438.11	51084.04
HE 1000 x 438	438.9	1026	305	26.9	49	548.57	928	924	893092.86	17409.22	20394.32	40.35	264.81	23321.57	1529.28	2447.04	6.52	100.34	2886.33	55293.42
HE 1000 x 494	497.1	1036	309	31	54	621.43	928	924	1011874.75	19534.26	23061.42	40.35	306.61	26783.74	1733.58	2800.99	6.57	110.34	4019.01	64014.88
HE 1000 x 584	588.8	1056	314	36	64	736.03	928	924	1229986.8	23295.2	27687.48	40.88	359.71	33384.01	2126.37	3455.81	6.73	130.34	6623.55	81242.08
